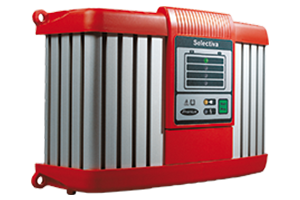

Selectiva 1kw
Due to its efficiency of up to 96%, every seventh charge is free. The Selectiva charger with Active Inverter Technology gently charges your batteries and may increase their service life by up to 25%.

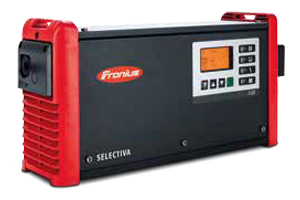

Selectiva Plus 2/3kw
With the Selectiva 3 kW battery charging system, Fronius is offering an efficient and reliable solution for charging traction batteries. The new Ri charging process adapts the charge according to the age, temperature and state of charge of the battery, delivering maximum energy efficiency and the longest battery life

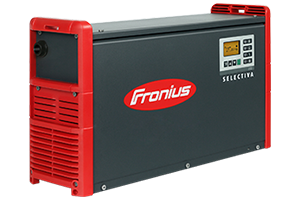

Selectiva Plus 8kw
The tried and tested range for medium to large forklift batteries with power output of 8 kW. Compact design, simple handling and the especially effective Active Inverter Technology make Selectiva Plus devices attractive to intralogistics professionals.
Selectiva Plus 16kw
The successful Active Inverter Technology with the revolutionary Ri-charging process adapts itself to the requirements of the battery and only charges the battery with the current that it actually needs.
The successful Active Inverter Technology with the revolutionary Ri-charging process adapts itself to autoselect battery capacity and battery voltage.
RI Charging Process
The RI charging process adapts to the demands on each battery and only charges the battery with the current that it really needs according to its age and state of charge. Gassing and/or battery warming is therefore minimised resulting in maximum battery service life.
Less Maintenance
Charging processes that are adapted to the demands of the battery prevent uncontrolled overloads and decrease maintenance requirements (less water required, less work). The service life of the battery increases as a result.
It is possible to recover / recharge deeply discharged, and sulphated batteries, using one of the unique charging profiles that are pre-programmed into the Selectiva Plus models.
| Technology | Device Efficiency | Charging Efficiency | Total Efficiency |
|---|---|---|---|
| 50 Hz | 80% | 70% | 56% |
| HF | 90% | 75% | 68% |
| Fronius AIT | 92% | 80% | 74% |
| Fronius AIT with Ri | 93% | 90% | 84% |

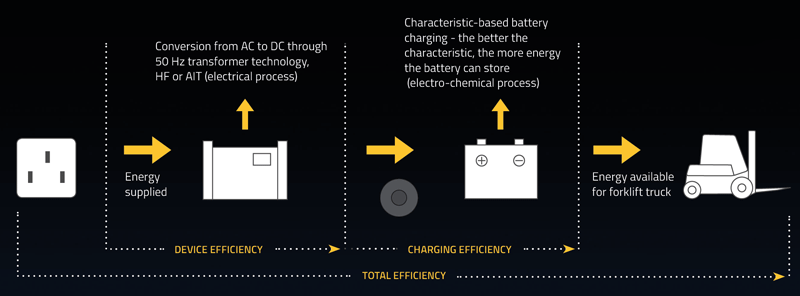

Maximum Energy Efficiency
When charging a traction battery, the flow of energy from the socket via the charger to the battery is represented in the form of total efficiency.
This electrical process determines the device efficiency. This is followed by an electrochemical process in which the battery is charged by means of a charging characteristic, which is referred to as charging efficiency.
As a first step, the energy coming from the socket into the battery charger is converted from AC to DC. What is important here is the battery charging technology that the charger employs.
Multiplying both processes together gives thetotal efficiency.
Selection Chart
| HOUSING | SELECTIVA 1kW | SELECTIVA 2kW | SELECTIVA PLUS 3kW | SELECTIVA 8kW | SELECTIVA 16kW |
|---|---|---|---|---|---|
| Housing type | Housing 1 | Housing 1 | Housing 2 | Housing 3 | Housing 4 |
| Power | 1kW | 2kW | 3kW | 8kW | 16kW |
| Dimensions w/h/d | 247 x 162 x 88 mm | 341 x 110 x 200 mm | 315 x 200 x 110 mm | 633 x 344 x 180 mm | 647 x 392 x 247 mm |
| Weight incl. mains and charging lead | 4 kg | 5 kg | 8 kg | 23 kg | 34 kg |
| Protection class | IP44 / IP40 | IP21 | IP21 | IP20 | IP20 |
| Mains lead | 2 m | 2.5 m | 2.5 m | 3 m | 3 m |
| Charging lead | 2.5 m | 3 m | 3 m | 3 m | 3 m |
| Mains voltage | 1 x 230v AC (+/- 10%) | 1 x 230v AC (+/- 15%) | 1 x 230v AC (+/- 10%) | 3 x 400v AC (+/- 10%) | 3 x 400V AC (+/- 10%) |
Selection Table
|
BATTERY VOLTAGE
|
RECHARGE TIME |
DEVICE TYPE
|
Input Current (a)
|
Type (kW)
|
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6h | 7h | 8h | 9h | 10h | 11h | 12h | ||||||
| CAPACITY (Ah) | ||||||||||||
|
12V
|
110 | 135 | 165 | 195 | 225 | 250 |
Selectiva
|
1020 | 1 | 2 | 1 | |
| 160 | 190 | 240 | 300 | 345 | 375 | 1030 | 1 | 2 | 1 | |||
|
24V
|
52 | 65 | 80 | 95 | 110 | 125 | 140 |
Selectiva
|
2010 | 1 | 2 | 1 |
| 80 | 100 | 125 | 150 | 170 | 185 | 210 | 2015 | 1 | 2 | 1 | ||
| 110 | 135 | 165 | 195 | 225 | 250 | 280 | 2020 | 1 | 2 | 1 | ||
| 180 | 210 | 260 | 320 | 360 | 400 | 450 | 2032 | 1 | 4 | 1 | ||
| 200 | 230 | 290 | 345 | 395 | 440 | 490 | 2040 | 1 | 7 | 1 | ||
| 225 | 290 | 355 | 415 | 480 | 535 | 600 |
Selectiva
|
2040 | 1 | 8 | 2 | |
| 280 | 365 | 440 | 520 | 595 | 675 | 750 | 2050 | 1 | 10 | 2 | ||
| 340 | 440 | 530 | 630 | 725 | 800 | 900 | 2060 | 1 | 12 | 2 | ||
| 395 | 510 | 630 | 725 | 840 | 940 | 1060 | 2070 | 1 | 12 | 2 | ||
| 450 | 580 | 710 | 830 | 950 | 1074 | 1200 |
Selectiva Plus
|
2080 | 1 | 12 | 3 | |
| 560 | 730 | 880 | 1020 | 1190 | 1350 | 1500 | 2100 | 1 | 16 | 3 | ||
| 560 | 730 | 880 | 1020 | 1190 | 1350 | 1500 |
Selectiva Ri
|
2100 | 3 | 7 | 8 | |
| 670 | 870 | 1060 | 1250 | 1430 | 1600 | 1800 | 2120 | 3 | 7 | 8 | ||
| 800 | 1000 | 1240 | 1450 | 1680 | 1880 | 2100 | 2140 | 3 | 8 | 8 | ||
| 930 | 1150 | 1420 | 1650 | 1920 | 2160 | 3 | 9 | 8 | ||||
| 1010 | 1305 | 1595 | 1875 | 2150 | 2180 | 3 | 11 | 8 | ||||
| 1120 | 1450 | 1770 | 2030 | 2200 | 3 | 12 | 8 | |||||
|
36V/48V
|
110 | 135 | 165 | 195 | 225 | 250 | 280 |
Selectiva
|
4020 | 1 | 8 | 2 |
| 185 | 240 | 290 | 345 | 395 | 445 | 495 | 4035 | 1 | 12 | 2 | ||
| 280 | 365 | 440 | 520 | 595 | 675 | 750 | Selectiva Plus | 4050 | 1 | 15 | 3 | |
| 340 | 440 | 530 | 620 | 720 | 800 | 900 |
Selectiva Ri
|
4060 | 3 | 8 | 8 | |
| 420 | 545 | 660 | 780 | 890 | 1015 | 1125 | 4075 | 3 | 9 | 8 | ||
| 505 | 655 | 795 | 935 | 1075 | 1200 | 1350 | 4090 | 3 | 10 | 8 | ||
| 670 | 870 | 1060 | 1250 | 1430 | 1600 | 1800 | 4120 | 3 | 13 | 8 | ||
| 800 | 1000 | 1240 | 1450 | 1680 | 1880 | 2100 | 4140 | 3 | 15 | 8 | ||
| 870 | 1085 | 1345 | 1575 | 1825 | 2040 | 2280 | 4160 | 3 | 15 | 8 | ||
|
80V/72V
|
225 | 290 | 355 | 415 | 480 | 535 | 600 |
Selectiva Ri
|
8040 | 3 | 8 | 8 |
| 340 | 440 | 530 | 620 | 720 | 800 | 900 | 8060 | 3 | 11 | 8 | ||
| 420 | 545 | 660 | 780 | 890 | 1015 | 1125 | 8075 | 3 | 13 | 8 | ||
| 495 | 635 | 770 | 910 | 1040 | 1170 | 1300 | 8090 | 3 | 15 | 8 | ||
| 670 | 870 | 1060 | 1250 | 1430 | 1600 | 1800 | 8120 | 3 | 22 | 16 | ||
| 800 | 1000 | 1240 | 1450 | 1680 | 1880 | 2100 | 8140 | 3 | 25 | 16 | ||
| 930 | 1150 | 1420 | 1650 | 1920 | 2140 | 2400 | 8160 | 3 | 28 | 16 | ||
| 1000 | 1250 | 1550 | 1790 | 2090 | 2327 | 2610 | 8180 | 3 | 30 | 16 | ||
PDF Downloads
Selection Table
