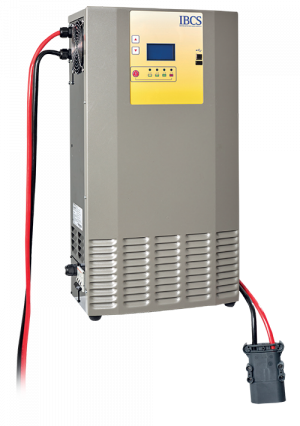

Green 6 Main features:
Modular system
(3 configurable models)
Power up to 8 kW, up to 150A@48V
Up to 100A @ 80V, up to 75A@ 96V.
Programmable via USB type A/B port or via display
Graphical display.
Green 8 Main features:
Modular system
(4 configurable models)
Power up to 10.5 kW, up to 200A@48V
Up to 130A @ 80V, up to 100A@ 96V.
Programmable via USB type A/B port or via display
Graphical display.Programmable via USB type A/B port
or via display Graphical display.
| Product Code | Voltage | Output | Mains (VAC) |
Input Current |
8HR Recharge |
12 HR Recharge |
Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|
| 24V50-03-SP | 24V | 50 | 3X440 | 3 | 280÷340 Ah | 450÷550 Ah | 348x665x217 | 35 |
| 24V60-03-SP | 60 | 3X440 | 4 | 340÷410 Ah | 540÷660 Ah | 348x665x217 | 35 | |
| 24V70-03-SP | 70 | 3X440 | 4.5 | 390÷480 Ah | 630÷770 Ah | 348x665x217 | 35 | |
| 24V80-03-SP | 80 | 3X440 | 5 | 450÷550 Ah | 720÷880 Ah | 348x665x217 | 35 | |
| 24V100-03-SP | 100 | 3X440 | 6 | 560÷690 Ah | 900÷1100 Ah | 348x665x217 | 35 | |
| 24V120-03-SP | 120 | 3X440 | 8 | 680÷830 Ah | 1080÷1320 Ah | 348x665x217 | 35 | |
| 24V150-03-SP | 150 | 3X440 | 10 | 840÷1030 Ah | 1350÷1650 Ah | 348x665x217 | 35 | |
| 24V160-03-SP | 160 | 3X440 | 10 | 900÷1100 Ah | 1440÷1760 Ah | 448x665x217 | 44 | |
| 24V180-03-SP | 180 | 3X440 | 12 | 1010÷1240 Ah | 1620÷1980 Ah | 448x665x217 | 44 | |
| 24V200-03-SP | 200 | 3X440 | 13 | 1130÷1380 Ah | 1800÷2200 Ah | 448x665x217 | 44 | |
| 36V50-03-SP | 36V | 50 | 3X440 | 5 | 280÷340 Ah | 450÷550 Ah | 348x665x217 | 35 |
| 36V60-03-SP | 60 | 3X440 | 6 | 340÷410 Ah | 540÷660 Ah | 348x665x217 | 35 | |
| 36V70-03-SP | 70 | 3X440 | 7 | 390÷480 Ah | 630÷770 Ah | 348x665x217 | 35 | |
| 36V80-03-SP | 80 | 3X440 | 8 | 450÷550 Ah | 720÷880 Ah | 348x665x217 | 35 | |
| 36V100-03-SP | 100 | 3X440 | 10 | 560÷690 Ah | 900÷1100 Ah | 348x665x217 | 35 | |
| 36V120-03-SP | 120 | 3X440 | 12 | 680÷830 Ah | 1080÷1320 Ah | 348x665x217 | 35 | |
| 36V150-03-SP | 150 | 3X440 | 14 | 840÷1030 Ah | 1350÷1650 Ah | 348x665x217 | 35 | |
| 36V160-03-SP | 160 | 3X440 | 15 | 900÷1100 Ah | 1440÷1760 Ah | 448x665x217 | 44 | |
| 36V180-03-SP | 180 | 3X440 | 17 | 1010÷1240 Ah | 1620÷1980 Ah | 448x665x217 | 44 | |
| 36V200-03-SP | 200 | 3X440 | 19 | 1130÷1380 Ah | 1800÷2200 Ah | 448x665x217 | 44 | |
| 48V50-03-SP | 48V | 50 | 3X440 | 6 | 280÷340 Ah | 450÷550 Ah | 348x665x217 | 35 |
| 48V60-03-SP | 60 | 3X440 | 8 | 340÷410 Ah | 540÷660 Ah | 348x665x217 | 35 | |
| 48V70-03-SP | 70 | 3X440 | 9 | 390÷480 Ah | 630÷770 Ah | 348x665x217 | 35 | |
| 48V80-03-SP | 80 | 3X440 | 10 | 450÷550 Ah | 720÷880 Ah | 348x665x217 | 35 | |
| 48V100-03-SP | 100 | 3X440 | 13 | 560÷690 Ah | 900÷1100 Ah | 348x665x217 | 35 | |
| 48V120-03-SP | 120 | 3X440 | 15 | 680÷830 Ah | 1080÷1320 Ah | 348x665x217 | 35 | |
| 48V130-03-SP | 130 | 3X440 | 17 | 730÷890 Ah | 1170÷1430 Ah | 348x665x217 | 35 | |
| 48V150-03-SP | 150 | 3X440 | 19 | 840÷1030 Ah | 1350÷1650 Ah | 348x665x217 | 35 | |
| 48V160-03-SP | 160 | 3X440 | 21 | 900÷1100 Ah | 1440÷1760 Ah | 448x665x217 | 44 | |
| 48V180-03-SP | 180 | 3X440 | 23 | 1010÷1240 Ah | 1620÷1980 Ah | 448x665x217 | 44 | |
| 48V200-03-SP | 200 | 3X440 | 26 | 1130÷1380 Ah | 1800÷2200 Ah | 448x665x217 | 44 | |
| 72V30-03-SP | 72V | 30 | 3X440 | 6 | 170÷210 Ah | 270÷330 Ah | 348x665x217 | 35 |
| 72V40-03-SP | 40 | 3X440 | 7.5 | 230÷280 Ah | 360÷440 Ah | 348x665x217 | 35 | |
| 72V50-03-SP | 50 | 3X440 | 10 | 280÷340 Ah | 450÷550 Ah | 348x665x217 | 35 | |
| 72V60-03-SP | 60 | 3X440 | 12 | 340÷410 Ah | 540÷660 Ah | 348x665x217 | 35 | |
| 72V80-03-SP | 80 | 3X440 | 15 | 450÷550 Ah | 720÷880 Ah | 348x665x217 | 35 | |
| 72V100-03-SP | 100 | 3X440 | 19 | 560÷690 Ah | 900÷1100 Ah | 348x665x217 | 35 | |
| 72V110-03-SP | 110 | 3X440 | 21 | 620÷760 Ah | 990÷1210 Ah | 448x665x217 | 44 | |
| 72V120-03-SP | 120 | 3X440 | 23 | 680÷830 Ah | 1080÷1320 Ah | 448x665x217 | 44 | |
| 72V130-03-SP | 130 | 3X440 | 25 | 730÷890 Ah | 1170÷1430 Ah | 448x665x217 | 44 | |
| 80V30-03-SP | 80V | 30 | 3X440 | 6.5 | 170÷210 Ah | 270÷330 Ah | 348x665x217 | 35 |
| 80V40-03-SP | 40 | 3X440 | 8.5 | 230÷280 Ah | 360÷440 Ah | 348x665x217 | 35 | |
| 80V50-03-SP | 50 | 3X440 | 11 | 280÷340 Ah | 450÷550 Ah | 348x665x217 | 35 | |
| 80V60-03-SP | 60 | 3X440 | 13 | 340÷410 Ah | 540÷660 Ah | 348x665x217 | 35 | |
| 80V80-03-SP | 80 | 3X440 | 17 | 450÷550 Ah | 720÷880 Ah | 348x665x217 | 35 | |
| 80V100-03-SP | 100 | 3X440 | 21 | 560÷690 Ah | 900÷1100 Ah | 348x665x217 | 35 | |
| 80V110-03-SP | 110 | 3X440 | 23 | 620÷760 Ah | 990÷1210 Ah | 448x665x217 | 44 | |
| 80V120-03-SP | 120 | 3X440 | 26 | 680÷830 Ah | 1080÷1320 Ah | 448x665x217 | 44 | |
| 80V130-03-SP | 130 | 3X440 | 28 | 730÷890 Ah | 1170÷1430 Ah | 448x665x217 | 44 |
PDF Downloads
Green 6 and 8 Three Phase Selection Table
