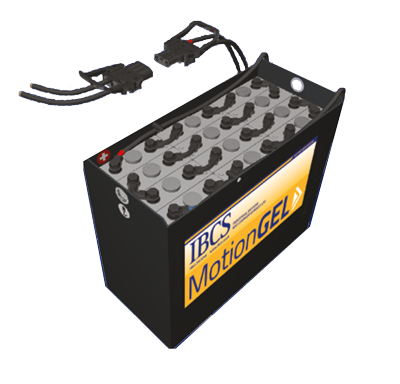

Motion Gel PZV Battery: This is a maintenance-free, valve regulated, gas recombination series of batteries. It has tubular positive plates and gel immobilised electrolyte. The new PZV range further enhances the IBCS product range available to the logistics and materials handling industries.
Applications
- PzV batteries can be used for forklift trucks, cleaning machines and other electric vehicles.
- Where maintenance-free operation is a must, either for practical or financial reasons.
- Warehouse areas which are governed by strict emission regulations or where liquid electrolyte leakage would not be acceptable environmentally.
- Low temperature storage facilities such as food, pharmaceutical or chemical products.
- Storage areas with limited charging space or without specially equipped charging station.
- Designed for medium and light duty applications. Where more demanding use is required, e.g. multi-shift, 80 Depth of Discharge and 8 hour recharge, the capacity should not exceed 600-650Ah for 24V, 350Ah for 48V, 200Ah for 80V batteries.
Technical Features and Benefits
- Minimum maintenance cost: sealed battery and topping up is not required.
- High Performance: tubular plate design ideal for deep cycling applications. PbCaSn lead alloy, suitable for VRLA battery.
- High operational safety and long life: recombination valve with regulated internal pressure limits prevents high temperatures. GEL electrolyte prevents acid stratification during daily charge-discharge operation. Both prolong the life of the battery.
- User and Environmental friendly: with the electrolyte in GEL form there is no acid leakage and no danger of corrosion and contamination.
- Operational flexibility: very low gas emissions, low ventilation requirements, large expensive charging stations are not required. Operational temperature ranges from -10C to +40C.
- Up to 1200 cycles at 60% DoD, with proper care and maintenance.
- Alloys used are recyclable with lead poles with brass insert and M10 thread. Poles have copper connectors are bolt-on type and fully insulated.
- Flexibility and interchangeability: corresponding dimensions and weight according to DIN and BS standards, safe and easy switch from old PzS to PzV battery.
- High Performance: tubular plate design ideal for deep
- Complete Product & Services package offering.
PSV - DIN PRODUCT RANGE
| MOTION GEL DIN | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZV110 | 198 | 47 | 342 | 371 | 8.8 |
| 3PZV165 | 198 | 65 | 342 | 371 | 12.3 |
| 4PZV220 | 198 | 83 | 342 | 371 | 15.8 |
| 5PZV275 | 198 | 101 | 342 | 371 | 19.3 |
| 6PZV330 | 198 | 119 | 342 | 371 | 22.9 |
| 7PZV385 | 198 | 137 | 342 | 371 | 26.4 |
| MOTION GEL DIN | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZV140 | 198 | 47 | 404 | 434 | 10.4 |
| 3PZV210 | 198 | 65 | 404 | 434 | 14.7 |
| 4PZV80 | 198 | 83 | 404 | 434 | 19.0 |
| 5PZV350 | 198 | 101 | 404 | 434 | 23.2 |
| 6PZV420 | 198 | 119 | 404 | 434 | 27.5 |
| MOTION GEL DIN | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZV160 | 198 | 47 | 459 | 489 | 11.8 |
| 3PZV240 | 198 | 65 | 459 | 489 | 16.7 |
| 4PZV320 | 198 | 83 | 459 | 489 | 21.6 |
| 5PZV400 | 198 | 101 | 459 | 489 | 26.5 |
| 6PZV480 | 198 | 119 | 459 | 489 | 31.4 |
| MOTION GEL DIN | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZV200 | 198 | 47 | 554 | 584 | 14.7 |
| 3PZV300 | 198 | 65 | 554 | 584 | 21.0 |
| 4PZV400 | 198 | 83 | 554 | 584 | 27.2 |
| 5PZV500 | 198 | 101 | 554 | 584 | 33.5 |
| 6PZV600 | 198 | 119 | 554 | 584 | 39.8 |
| MOTION GEL DIN | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZV240 | 198 | 47 | 672 | 702 | 17.0 |
| 3PZV360 | 198 | 65 | 672 | 702 | 24.2 |
| 4PZV480 | 198 | 83 | 672 | 702 | 31.4 |
| 5PZV600 | 198 | 101 | 672 | 702 | 38.6 |
| 6PZV720 | 198 | 119 | 672 | 702 | 45.8 |
| MOTION GEL DIN | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZV260 | 198 | 47 | 713 | 740 | 19.2 |
| 3PZV390 | 198 | 65 | 713 | 740 | 27.3 |
| 4PZV520 | 198 | 83 | 713 | 740 | 35.5 |
| 5PZV650 | 198 | 101 | 713 | 740 | 43.5 |
| 6PZV780 | 198 | 119 | 713 | 740 | 51.7 |
PSVB - BS PRODUCT RANGE
| MOTION GEL BS | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZVB104 | 158 | 46 | 401 | 428 | 8.4 |
| 3PZVB156 | 158 | 62 | 401 | 428 | 11.5 |
| 4PZVB208 | 158 | 77 | 401 | 428 | 14.6 |
| 5PZVB260 | 158 | 93 | 401 | 428 | 17.8 |
| 6PZV312 | 158 | 109 | 401 | 428 | 20.9 |
| MOTION GEL BS | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZVB122 | 158 | 46 | 454 | 484 | 8.3 |
| 3PZVB183 | 158 | 62 | 454 | 484 | 11.9 |
| 4PZB224 | 158 | 78 | 454 | 484 | 15.1 |
| 5PZVB300 | 158 | 93 | 454 | 484 | 20.5 |
| 6PZVB360 | 158 | 109 | 454 | 484 | 24.1 |
| MOTION GEL DIN | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZVB124 | 158 | 78 | 515 | 545 | 9.8 |
| 3PZVB213 | 158 | 62 | 515 | 545 | 13.7 |
| 4PZVB284 | 158 | 78 | 515 | 545 | 17.6 |
| 5PZVB284 | 158 | 93 | 515 | 545 | 23.1 |
| 6PZVB420 | 158 | 109 | 515 | 545 | 27.3 |
| MOTION GEL BS | |||||
|---|---|---|---|---|---|
| Cell Type | Length (b) | Width (l) | Height 1 | Height 2 | Weight |
| 2PZVB170 | 158 | 46 | 610 | 640 | 11.4 |
| 3PZVB255 | 158 | 62 | 610 | 640 | 15.9 |
| 4PZVB340 | 158 | 78 | 610 | 640 | 20.7 |
| 5PZVB425 | 158 | 93 | 610 | 640 | 27.5 |
| 6PZVB510 | 158 | 109 | 610 | 640 | 32.4 |
