BIGGER POWER FOR SMALL TRACTION
Powerbloc™ and Powerbloc Dry™ are ranges of bloc batteries for all applications in small traction, from cleaning machines to pallet trucks, industrial electric vehicles, aerial platforms, automated guided vehicles, as well as domestic applications like wheelchairs and golf carts. Powerbloc are flooded batteries whilst Powerbloc Dry are gas recombination VRLA batteries.
POWERBLOC TP
Cell Construction
The Powerbloc TP series consist of robust tubular positive plates with free electrolyte to ensure a long operating life.
Benefits
- Premium tubular plate construction for robust 1100 cycle performance.
- Maximum performance giving best possible run-times in the heaviest duty applications.
- Extended performance and run time for maximum machine performance.
These batteries can be recharged with HF or 50Hz chargers with approved charging profiles. It is always recommended to use our Hawker HF range of chargers.
Our Hawker Modular and COMpact™ HF chargers are equipped with microprocessors and ensure a quick, reliable full recharge from full 80% discharge. These chargers have an electronically regulated characteristic charging curve to ensure the charge is optimised, whilst being gentle on the battery. The charging process is automatically controlled and terminated. All chargers are protected against overload and short circuit.
EnerSys™ PowerblocSpecifications Tables
|
POWERBLOC TP
|
||||||||
|---|---|---|---|---|---|---|---|---|

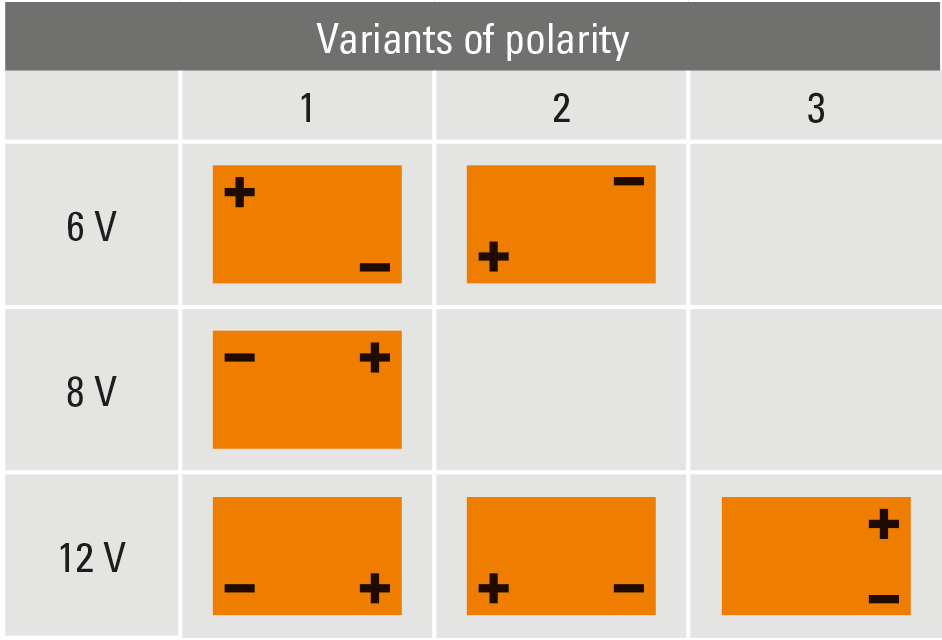

| Type | Voltage [V] | C5 [AH] | C20 | Dimensions [max. mm] L W H |
Weight [kg] | No of cycles1) 80% DOD | Polarity2) | Terminal3) |
| 6 TP 175 | 6 | 175 | 230 | 263 183 270 | 30.5 | 1100 | 1 | AP |
| 6 TP 180 | 6 | 180 | 220 | 244 190 269 | 29.5 | 1100 | 1 | AP |
| 6 TP 210 | 6 | 210 | 260 | 244 190 269 | 33.5 | 1100 | 1 | AP |
| 12 TP 70 | 12 | 70 | 90 | 308 176 217 | 25.5 | 1100 | 1 | AP |
| 12 TP 90 | 12 | 90 | 120 | 344 171 233 | 28.6 | 1100 | 1 | AP |
| 12 TP 110 | 12 | 110 | 140 | 345 173 278 | 39.0 | 1100 | 1 | AP |
| 12 TP 125 | 12 | 125 | 160 | 508 175 225 | 38.5 | 1100 | 3 | AP |
|
POWERBLOC FPT
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Type | Voltage [V] | C5 [AH] | C20 | Dimensions [max. mm] L W H |
Weight [kg] | No of cycles1) 80% DOD | Polarity2) | Terminal3) |
| 6 FPT 185 | 6 | 185 | 237 | 260 180 277 | 27.8 | 700 | 1 | UT |
| 6 FPT 185 | 6 | 195 | 250 | 261 181 278 | 29.2 | 700 | 1 | UT |
| 6 FPT 210 | 6 | 210 | 269 | 263 179 291 | 31.7 | 700 | 1 | UT |
| 6 FPT 215 | 6 | 215 | 275 | 297 181 293 | 33.2 | 700 | 1 | UT |
| 6 FPT 255 | 6 | 255 | 326 | 316 180 368 | 41.2 | 00 | 1 | UT |
| 6 FPT 305 | 6 | 305 | 390 | 312 182 418 | 50.6 | 700 | 1 | UT |
| 8 FPT 145 | 8 | 145 | 186 | 262 181 278 | 28.7 | 700 | 1 | UT |
| 12 FPT 85 | 12 | 85 | 109 | 323 172 232 | 26.6 | 700 | 2 | UT |
| 12 FPT 105 | 12 | 105 | 134 | 349 171 248 | 29.0 | 700 | 2 | UT |
| 12 FPT 120 | 12 | 120 | 150 | 350 180 278 | 39.2 | 700 | 2 | UT |
| 12 FPT 150 | 12 | 150 | 192 | 394 176 374 | 49.6 | 700 | 1 | UT |
|
POWERBLOC DRY MFP
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Type | Voltage [V] | C5 [AH] | C20 | Dimensions [max. mm] L W H |
Weight [kg] | No of cycles1) 60% DOD | No of cycles1) 80% DOD | Polarity2) | Terminal3) |
| 6 MFP 180 | 6 | 180 | 216 | 249 190 275 | 29.6 | 700 | 500 | 1 | AP |
| 6 MFP 240 | 6 | 240 | 307 | 311 183 358 | 47.0 | 700 | 500 | 1 | AP |
| 12 MFP 50 | 12 | 50 | 65 | 278 175 190 | 21.0 | 700 | 500 | 1 | AP |
| 12 MFP 70 | 12 | 70 | 90 | 307 169 228 | 24.1 | 700 | 500 | 2 | AP |
| 12 MFP 80 | 12 | 80 | 93 | 307 169 228 | 27.1 | 700 | 500 | 2 | AP |
| 12 MFP 105 | 12 | 105 | 129 | 349 174 283 | 37.4 | 700 | 500 | 1 | AP |
